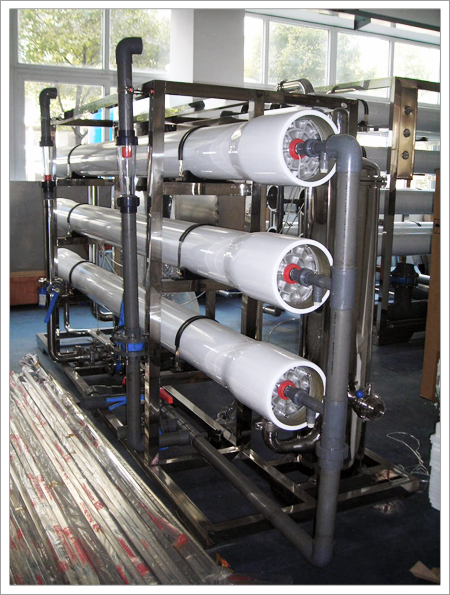

 business / industrial water treatment equipment photo - AGF-RO3000
RO host control box
 business / industrial water treatment equipment photo / description
Figure 1:
Figure 2:small molecule energy water production process flow diagram
Process:
The original water tank → Raw water booster → Large stainless steel quartz sand filter → Activated carbon stainless steel filter → Ion exchange resin stainless steel filter → Security filter → The natural quarry rice → Serves as a energy conversion system → Magnetization of the small molecule resonance system → 20-inch rear compressed activated carbon filter →
Hollow fiber ultrafiltration system → Stainless steel sterile water tank (ozone generator) → UV sterilization → Energy drink straight water → Water supply
Description of process content：
(1)The raw water tank (optional)
Storage of raw water for the precipitation water sediment particles and other sediment. While buffering the impact of the original water pressure instability caused by the water treatment system.
(Such as water pressure is too low or too high due to the pressure sensing reaction).
(2) the original pump
Constant water pressure, amount of stable water supply.
(3)quartz sand filter
The multiple filter layer filters, the main purpose is to remove sediment, rust, colloid, suspended solids and other particles in the raw water contains more than 20um substances,
Choice of manual valve control or automatic backwash controller is flushing a series of operations. Water production to ensure the quality and prolong the life of the equipment.
(4) Activated carbon filters
The system uses a shell activated carbon filters, activated carbon adsorption not only the removal of the color, odor, a large number of chemical and biological organisms residual chlorine value, reduce water and pesticide pollutants and remove the trihalides (THM) and other pollutants.
Choice of manual valve control or automatic backwash controller is flushing a series of operations. Water production to ensure the quality and prolong the life of the equipment. At the same time, the device has a system of self-maintenance.
(5) ion softening system
Before entering the reverse osmosis membrane, ion softener or put in the right amount of carbonate scale inhibitor to prevent SiO2, sulfate crystals.
(6) security filters
Using precision filter to remove residual suspended solids in the water, the merits of particulates and colloidal substances, the follow-up to the RO system running more secure, more reliable equipment. Filter 5um meltblown filter, to prevent the filter unit at a higher level, missing more than 5um remove impurities.
Prevent damage to the surface of the membrane, thereby damaging the membrane desalination performance into the reverse osmosis apparatus.
(7) natural Maifanshi of mineralized system
Stone into account the water is not only clean, but the taste particularly sweet, contain minerals, weakly alkaline water, suitable for drinking straight.
(8) serves as a energy conversion system
π, mineralized water can release 23 kinds of water-soluble minerals beneficial to the body, and converted into a small-molecular structure of water, the infiltration, with wave energy (bred ray), the organisms of all skill activation and improve their health.
(9) small molecule magnetization resonance system
When the shock resonance of water flow through the high magnetic field can induce free electrons, and rearrange the molecular structure of water, making it a "small molecules of water" instant water activation with high energy.
(10) 20-inch rear compressed activated carbon filter
(11)hollow fiber ultrafiltration system
Ultrafiltration membrane pressure-driven membrane separation process, filtered through the pores of the membrane surface, the diameter of between 0.002-0.1μm particles and impurities trapped, can effectively remove water colloidal silicon, proteins, microorganisms and macromolecular organic matter. When the liquid mixture flowing through the surface of the membrane under a certain pressure to promote the solvent and small molecules through the membrane, and the macromolecules were trapped in order to achieve the size, intermolecular separation and purification purposes.
The characteristics of the ultrafiltration device ultrafiltration device with a vertical cross-flow filtration, which can effectively clean or recoil-election.
Therefore, it has a remarkable performance - High precision: completely filter out bacteria in the water, rust, colloid, macromolecular organic matter and other substances with other purification separation device to retain trace elements beneficial to human health, micro-organisms and turbidity of the water purification and other key indicators is better than bottled drinking water health standards.
(12) sterile stainless steel water tank
Finished water storage after disinfection, the supply of water points.
(13) Ozone disinfection (optional)
Ozone water to kill bacteria and viruses, to prevent the tank from new bacteria produce thoroughly to ensure the quality of water purification water.
(14) booster
To ensure that the quantity of water supply and pressure of the water points.
(15) UV ultraviolet disinfection |
